Hybrid Multi Purpose Agriculture UAV with 22L Payload and 6m Spray Width
Key Specifications
| Attribute | Value |
| Rated load capacity | 22L or 60KG |
| Spray rate | 6.5 liters per minute |
| Takeoff weight | 64 kilograms |
| Flight speed | 9 meters per second |
| Engine Continuous Power | 6.5 kW |
| Folding size | 760*720*850 mm |
| Spray width | 6-12 meters |
| Protection level | IP55 |
| Maximum current | 120A |
| Working temperature | 0℃~55℃ |
| Display Size | 5.5 inches |
Product Overview

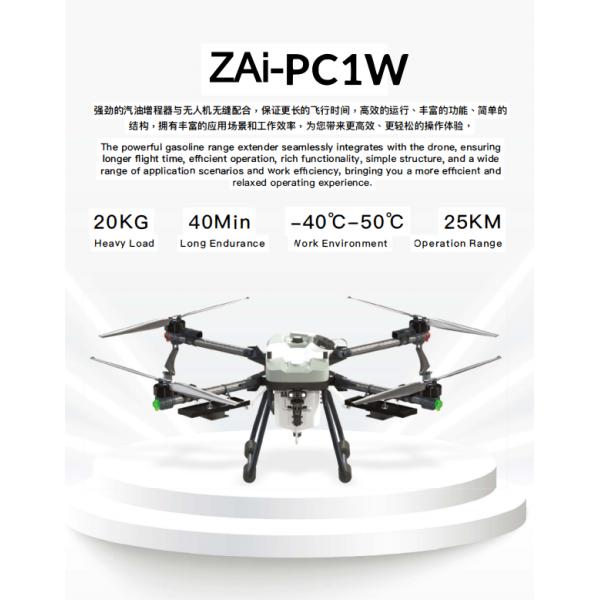

The ZAi-PC1W agricultural UAV is a multifunctional flight platform designed for modern agricultural needs, featuring:
- X4 structural form with cross-folding frame for durability and transport efficiency
- Integrated spraying, spreading, transportation, and aerial surveying capabilities
- Upgraded intelligent operation system for precise and efficient operations
- Obstacle avoidance and terrain-following flight functions for diverse scenarios
- Multiple safety strategies with high protection levels for stable operation
- Mobile integrated take-off and landing platform suitable for various farm sizes
Ideal Users
Agricultural professionals with large farms or orchards, agricultural technology enthusiasts, service providers, and large-scale farmers who value performance, efficiency and safety in plant protection technologies.
Technical Specifications
| Drone Parameters | Spraying System |
| Model Number: ZAi-PC1W | Nozzle type: high-pressure sector nozzle |
| Architecture layout: four-axis | Homework box capacity: 20 L |
| Max wheelbase: 1950mm | Spray width: 6m |
| Pesticide container capacity: 22L | Smart Charger nominal power: 2200W/90A |
| Idle hover time: 30 min | Charging technology: Balanced charging mode |
| Drone weight: 40.5 kg | Battery type: Lithium battery |
Performance Parameters
- Maximum flight speed: 9 m/s
- Flight altitude: ≤1000 m (load decreases above 1000 m)
- Maximum flight radius: 2KM
- No-load flight time: 30 min
- Hovering accuracy: With RTK: ±10 cm; Without RTK: ±100 cm horizontal, ±50 cm vertical
- Obstacle avoidance perception range: 1.5 - 27 m
- Wind resistance: 6m/s
- Working temperature: 0℃~50℃
- Maximum take-off weight: 64 kg
Standard Package Includes
ZAi-PC1W drone ×1, H12 remote control ×1, battery ×1 (8365188HP), UP-S14 charger ×1
Applications
Agriculture
Users: Farmers
Uses: Pesticide spraying, fertilization, and sowing for field crops and fruit trees
Benefits: Wide operation range, high speed, good precision, low labor intensity
Example: Can spray 1,000 mu of wheat fields in half a day compared to 200 man-days manually
Forestry
Users: Forestry department staff
Uses: Pest control in forest areas
Benefits: Operates in complex areas with high safety and efficiency
Example: Controls pests in 5,000 mu of forest in about two days
Fishery
Users: Aquaculture farmers
Uses: Feed distribution and pest control
Benefits: Even water area coverage, easy operation
Example: Completes feed distribution for 200-mu fishpond in minutes
Logistics
Users: Agricultural product growers
Uses: Transportation of agricultural products
Benefits: Fast speed, not restricted by road conditions
Example: Reduces 5km mountain transport from 1-2 hours to 10-15 minutes
